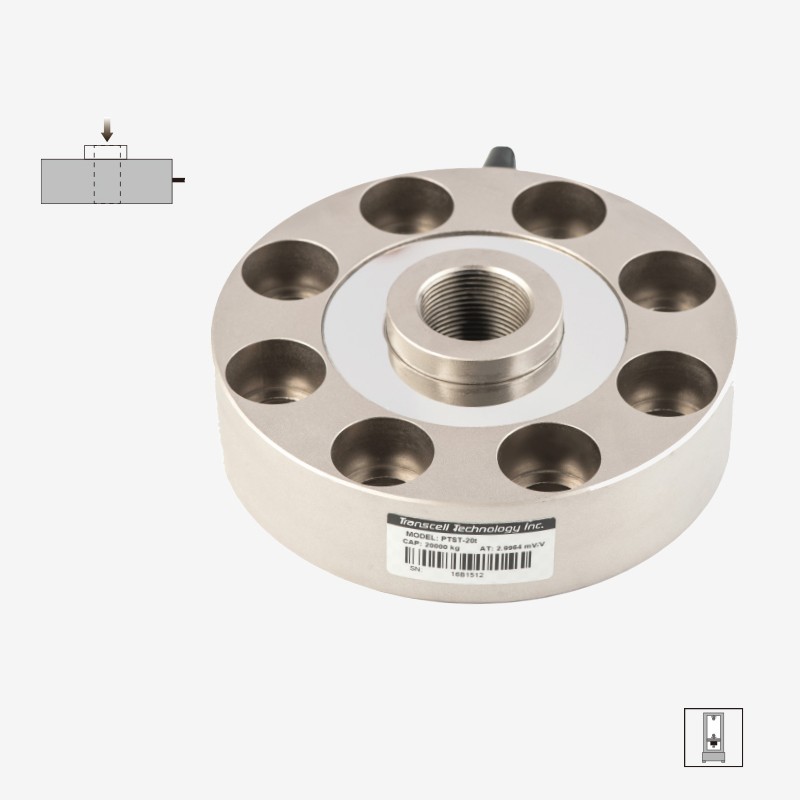

PTST

产品介绍 Introduce：

- PTST轮辐式称重传感器可以满足0.2t~30t量程范围内的精确称量

- 量程：0.2 t, 0.5 t, 1 t, 1.5 t, 2.5 t, 5 t, 10 t, 20 t, 25 t, 30 t

- 采用优质合金钢和铝合金(200kg) 材质

- 结构简单，安装方便

- 主要用于测试机

- 表层防腐镀镍处理

- PSD load cell can meet the accurate weighing in the capacity of 0.2t- -30t

- Capacity: 0.2 t, 0.5 t, 1 t, 1.5 t, 2.5 t, 5 t, 10 t, 20 t, 25 t, 30 t

- Alloy steel and Aluminium Alloy(200kg) material

- Simple structure, easy to install

- Mainly used for testing machine

- Surface anti-corrosion nickel plated

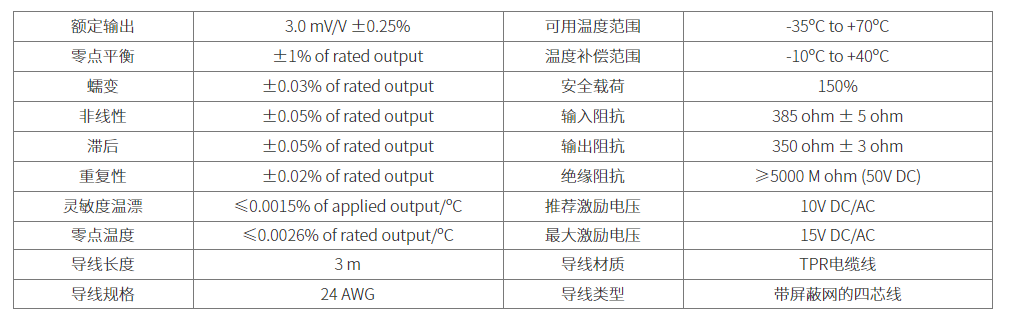

产品参数Specifications：

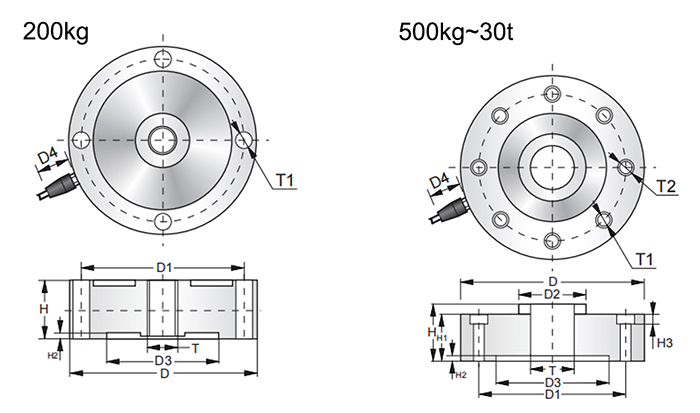

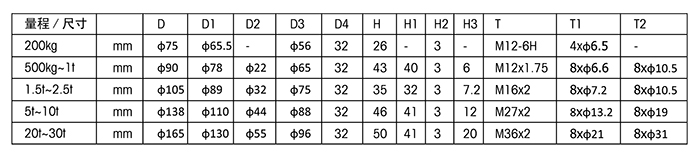

产品尺寸 Dimensions：

接线定义 Schematic：
