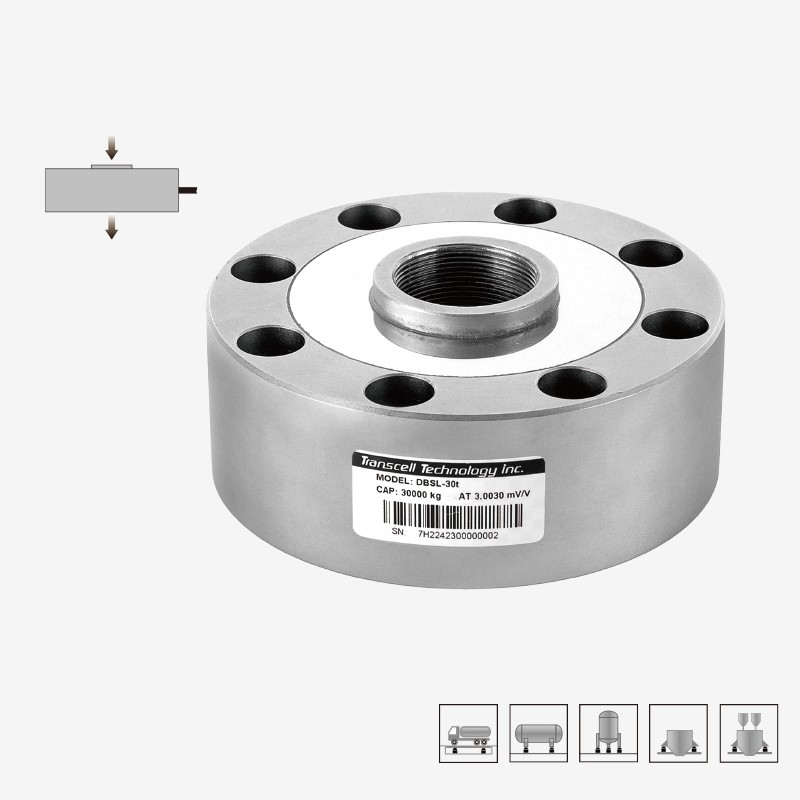

DBSL

产品介绍 Introductions：

-DBSL轮辐式称重传感器可以满足1t-30t量程范围内的精确称量

- 量程：1t, 2t, 3t, 5t, 10t, 15t, 20t, 30t

-高精度，反应快

-优质合金钢材质

-表层镀镍防腐处理

-安装简便、快速，稳定可靠

-适用于材料试验机，汽车衡和大型料斗秤等

- DBSLspoke type load cell can meet the accurate weighing in the capacity of 1t- -30t

- Capacity: 1t, 2t, 3t, 5t, 10t, 15t, 20t, 30t

- High accuracy, fast response

- Senior alloy steel

- Protected against corrosion by nickel-plated treatment

- Easy to install, stable& reliable

- Suitable for testing machine, truck scales and big bin & hopper scales, etc.

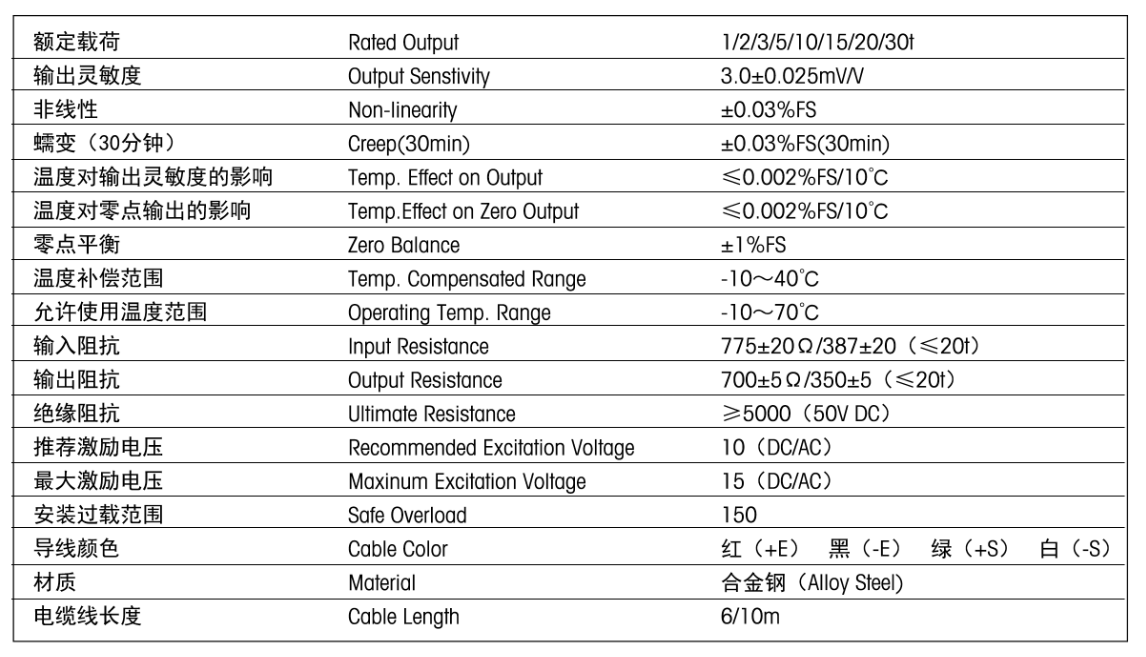

产品参数 Specifications：

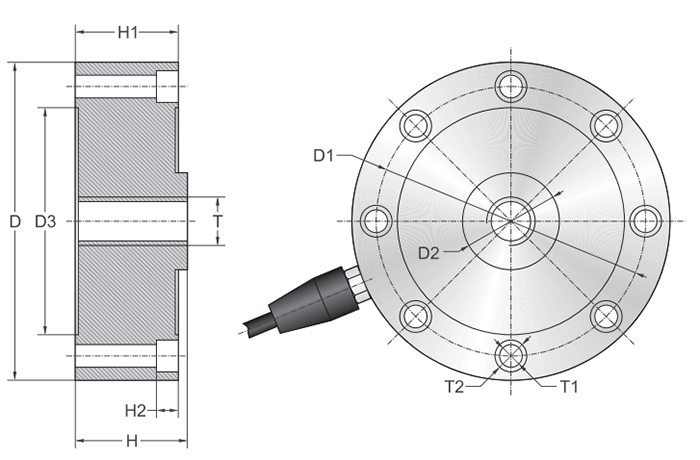

产品尺寸 Dimensions：

接线方式 Schematic：
